May 04, 2020 Bodymovin is an After Effects plugi n that can be downloaded for free via GitHub. It translates animations based around shape layers in After Effects and exports them to SVG, Canvas, HTML + JS. Hernan Torrisi (87). This is an After Effects extension to export animations to html. A subset of AE features are supported. Export to html, svg or canvas.
After Effects plugin for exporting animations to svg/canvas/html + js
V 4.6.9
- new expressions. More Rubberhose support
- expression fixes
- expression sandboxing window and document
- pointInLine 3d fix
V 4.6.8
- 3d camera fix
- fix for tests
V 4.6.7
- Trim path with Rectangle fix
V 4.6.6
- Text baseline supported (from After Effects 13.6 (CC 2015))
- text animator fixes
V 4.6.5
- trim path full fix
V 4.6.4
- velocityAtTime expression fix
V 4.6.3
- bodymovin_light fix
- rubberhose autoflop patch for inactive admin property
Get it directly from the store!https://creative.adobe.com/addons/products/12557 CC 2014 and up.
If you need the latest latest version, you can still install it from here:
Option 1 (Recommended):
Bodymovin For After Effects Download
- download the ZIP from the repo.
- Extract content and get the .zxp file from ‘/build/extension’
- Use the ZXP installer from aescripts.com.
Option 2:
Close After Effects
Extract the zipped file on build/extension/bodymovin.zxp to the adobe CEP folder:
WINDOWS:
C:Program Files (x86)Common FilesAdobeCEPextensions or
C:<username>AppDataRoamingAdobeCEPextensions
MAC:
/Library/Application Support/Adobe/CEP/extensions/bodymovin
(you can open the terminal and type:
cp -R YOURUNZIPEDFOLDERPATH/extension /Library/Application Support/Adobe/CEP/extensions/bodymovin
then type:
ls /Library/Application Support/Adobe/CEP/extensions/bodymovin
to make sure it was copied correctly type)Edit the registry key:
WINDOWS:
open the registry key HKEY_CURRENT_USER/Software/Adobe/CSXS.6 and add a key named PlayerDebugMode, of type String, and value 1.
MAC:
open the file ~/Library/Preferences/com.adobe.CSXS.6.plist and add a row with key PlayerDebugMode, of type String, and value 1.
Option 3:
Install the zxp manually following the instructions here: https://helpx.adobe.com/x-productkb/global/installingextensionsandaddons.html
Skip directly to “Install third-party extensions”
For all of them
- Go to Edit > Preferences > General > and check on “Allow Scripts to Write Files and Access Network”
How it works
After Effects
- Open your AE project and select the bodymovin extension on Window > Extensions > bodymovin
- A Panel will open with a Compositions tab.
- On the Compositions tab, click Refresh to get a list of all you project Comps.
- Select the composition you want to export
- Select Destination Folder
- Click Render
- look for the exported json file (if you had images or AI layers on your animation, there will be an images folder with the exported files)

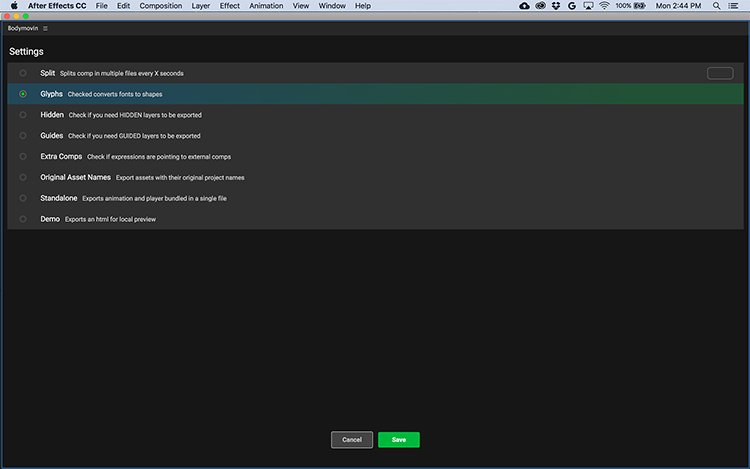

Settings:
segments: export animation in segments. If you have a main comp with more than one layer you can export the animation in parts so you won't load all at once. The exporter will segment your main comp considering where a layer starts in time.
snapshot: take an svg snapshot of the animation to use as poster. After you render your animation, you can take a snapshot of any frame in the animation and save it to your disk. I recommend to pass the svg through an svg optimizer like https://jakearchibald.github.io/svgomg/ and play around with their settings.
HTML
Check the demos for different ways to load animations.
- get the bodymovin.js file from the build/player/ folder for the latest build
- include the .js file on your html (remember to gzip it for production)
You can call bodymovin.loadAnimation() to start an animation. It takes an object as a unique param with:
- animationData: an Object with the exported animation data.
- path: the relative path to the animation object. (animationData and path are mutually exclusive)
- loop: true / false / number
- autoplay: true / false it will start playing as soon as it is ready
- name: animation name for future reference
- renderer: ‘svg’ / ‘canvas’ / ‘html’ to set the renderer
- container: the dom element on which to render the animation
Usage
animation instances have these main methods: anim.play()
anim.stop()
anim.pause()
anim.setSpeed(speed) -- one param speed (1 is normal speed)
anim.goToAndStop(value, isFrame) first param is a numeric value. second param is a boolean that defines time or frames for first param
anim.goToAndPlay(value, isFrame) first param is a numeric value. second param is a boolean that defines time or frames for first param
anim.setDirection(direction) -- one param direction (1 is normal direction.)
anim.playSegments(segments, forceFlag) -- first param is a single array or multiple arrays of two values each(fromFrame,toFrame), second param is a boolean for forcing the new segment right away
anim.destroy()
Bodymovin Download
bodymovin has 8 main methods: bodymovin.play() -- with 1 optional parameter name to target a specific animation
bodymovin.stop() -- with 1 optional parameter name to target a specific animation
bodymovin.setSpeed() -- first param speed (1 is normal speed) -- with 1 optional parameter name to target a specific animation
bodymovin.setDirection() -- first param direction (1 is normal direction.) -- with 1 optional parameter name to target a specific animation
bodymovin.searchAnimations() -- looks for elements with class “bodymovin”
bodymovin.loadAnimation() -- Explained above. returns an animation instance to control individually.
bodymovin.destroy() -- To destroy and release resources. The DOM element will be emptied.
bodymovin.registerAnimation() -- you can register an element directly with registerAnimation. It must have the “data-animation-path” attribute pointing at the data.json url
bodymovin.setQuality() -- default ‘high’, set ‘high’,‘medium’,‘low’, or a number > 1 to improve player performance. In some animations as low as 2 won't show any difference.
Events
- onComplete
- onLoopComplete
- onEnterFrame
- onSegmentStart
you can also use addEventListener with the following events:
- complete
- loopComplete
- enterFrame
- segmentStart
See the demo folders for examples or go to http://codepen.io/airnan/ to see some cool animations
Recommendations
Files
If you have any images or AI layers that you haven't converted to shapes (I recommend that you convert them, so they get exported as vectors, right click each layer and do: “Create shapes from Vector Layers”), they will be saved to an images folder relative to the destination json folder. Beware not to overwrite an exiting folder on that same location.
Performance
This is real time rendering. Although it is pretty optimized, it always helps if you keep your AE project to what is necessary
More optimizations are on their way, but try not to use huge shapes in AE only to mask a small part of it.
Too many nodes will also affect performance.
Help
If you have any animations that don‘t work or want me to export them, don’t hesitate to write.
I'm really interested in seeing what kind of problems the plugin has.
my email is hernantorrisi@gmail.com
Examples
See examples on codepen.
Support
- The script supports precomps, shapes, solids, images, null objects, texts
- It supports masks and inverted masks. Maybe other modes will come but it has a huge performance hit.
- It supports time remapping (yeah!)
- The script supports shapes, rectangles and ellipses and stars.
- Only slider effects are supported at the moment.
- Expressions. Check the wiki page for more info.
- Not supported: image sequences, videos and audio are (maybe some of them coming soon)
- No layer stretching! No idea why, but stretching a layer messes with all the data.
Bodymovin For After Effects Kids
Notes
- If you want to modify the parser or the player, there are some gulp commands that can simplify the task
- look at the great animations exported on codepen See examples on codepen.
- gzipping the animation jsons and the player have a huge reduction on the filesize. I recommend doing it if you use it for a project.
